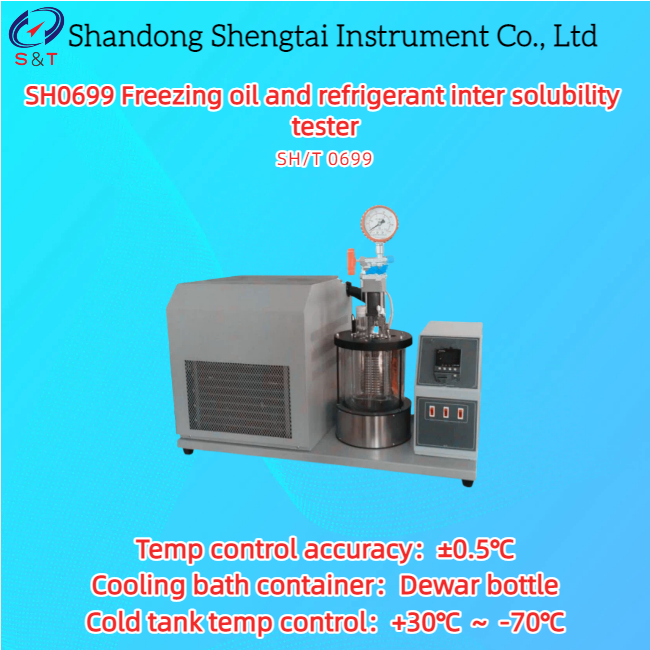

SH0699 Freezing oil and refrigerant inter solubility tester
SH0699 refrigerant oil and refrigerant solubility tester is designed and manufactured according to the national petrochemical industry standard SH/T0699 refrigerant oil and refrigerant solubility, refrigerant oil compatibility.
It is applicable to the compatibility, compatibility and inter solubility of refrigerating oil and refrigerant
Instrument features
Digital tube display temperature, the use of imported PT100 temperature sensor, equipped with a special glass thermometer;
Equipped with special pressure gauge, vacuum pump pumping, needle valve adjustment, vacuum pressure gauge display instrument is equipped with a safety valve, to ensure the safety of the sample two-phase separation curve, and ensure that the working pressure is 1.5Mpa. The pressure resistant hose is connected with the transparent tube to protect the cylinder, and it is convenient to observe the special refrigerant collecting pipeline.
| Product model |
SH0699 |
| Product Name |
Refrigeration oil and refrigerant solubility tester |
| Manufacturer |
Shandong Shengtai Instrument Co., Ltd |
| Testing items |
Used for compatibility between refrigeration oil and refrigerant, compatibility between refrigeration oil, and compatibility between refrigerant |
| Standards |
SH/T 0699 |
| Simple technical features or parameters |
Nixie tube is used to display temperature, and imported PT100 temperature sensor is used |
Technical parameters
| Working power supply |
AC220V±10% 50HZ |
| Working cold tank |
double vacuum glass bath |
| Cold tank temp control |
+30℃ ～ -70℃ |
| Temp control accuracy |
±0.5℃ |
| Refrigeration system |
imported overlapping refrigeration compressor |
| Cooling bath container |
Dewar bottle |
| Relative humidity |
≤85% |
| Whole power |
About 1500W |
| Instrument size |
720*450*620mm |
| Instrument weight |
72kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N |
Name |
Unit |
Quantity |
Remarks |
| 1 |
Engine coolant compatibility tester |
Set |
1 |
|
| 2 |
Test tube and protective tube |
Set |
1 |
|
| 3 |
Pressure hose |
Piece |
1 |
|
| 4 |
Thermometer |
Piece |
1 |
|
| 5 |
PT100 sensor |
Piece |
1 |
|
| 6 |
Power cable(220V 6A) |
Piece |
1 |
|
| 7 |
Instruction |
Copy |
1 |
|
| 8 |
Packing list |
Copy |
1 |
|
| 9 |
Certificate warranty card |
Copy |
1 |
|
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
